Home Products Active Optical Cable 100G QSFP28 AOC 100G QSFP28 to 4x 25G SFP28 AOC Cable

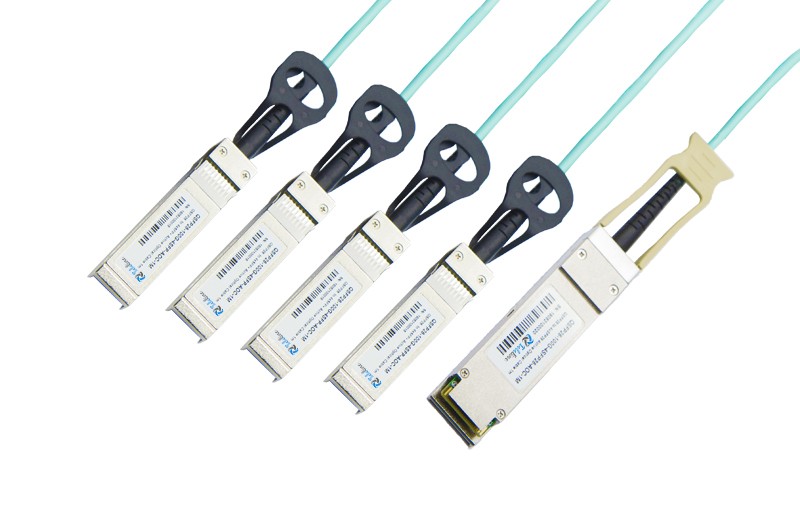

100G QSFP28 to 4x 25G SFP28 AOC Cable

100G QSFP28 to 4x 25G SFP28 AOC Cable

  • Product Item:TAQ4S28-HGXM-XXC
  • DATA RATE:100G to 4*25G
  • WAVE LENGTH:1310nm
  • DISTANCE:1~300M
  • CONNECTOR:MPO
  • 100G  , QSFP28  , AOC  , QSFP+  , CFP4  , 40G  , 25G  , SFP28  , 10G  , SFP+
    Inquiry Send Email

    Description


    The 100G QSFP28 AOC cables

    QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 25.78125Gb/s, providing an aggregated rate of 104Gb/s. TELELINC QSFP28 AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.

    Features

    ●Four-channel full-duplex active optical cable

    ●Transmission data rate up to 26Gbit/s per channel

    ●Reliable VCSEL array technology using multi-mode fiber

    ●Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,70m

    ●Low power consumption <3.5W

    ●Operating case temperature 0°C to +70°C

    ●3.3V power supply voltage

    ●RoHS 6 compliant

    ●Hot Pluggable QSFP form factor

    Applications

    ● 100G Ethernet

    ● Data center

    ● Infiniband QDR/DDR/SDR

    ● 25/100G Fibre Channel

    Description

    TELELINC QSFP28 active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 100G Ethernet ,or InfiniBand QDR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba. TELELINC QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 25.78125Gb/s, providing an aggregated rate of 104Gb/s. TELELINC QSFP28 AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.



    Inquiry Us
