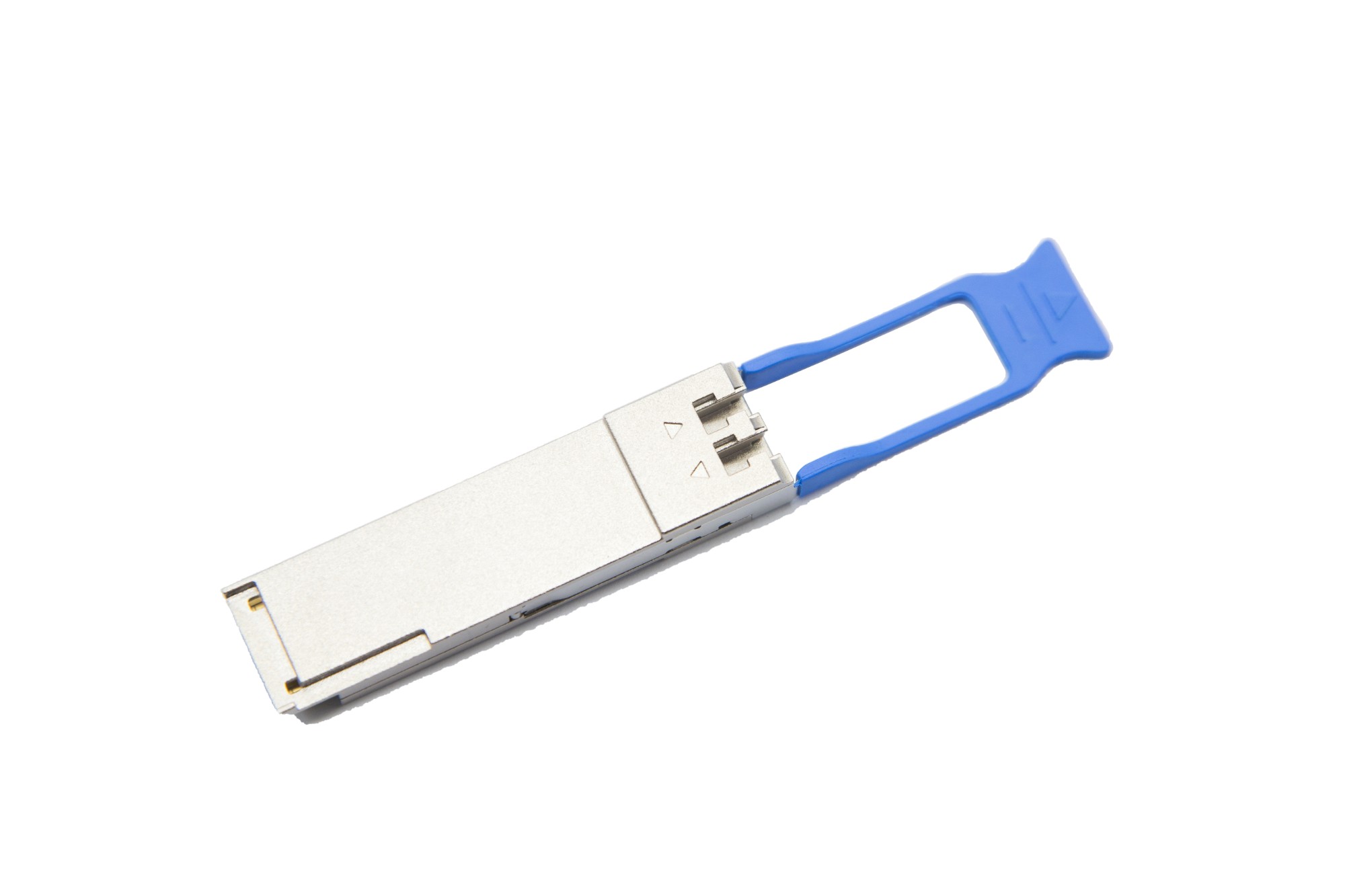

QSFP-40G-ER4 CWDM 40KM LC DDM TRANSCEIVER
QSFP-40G-ER4 CWDM 40KM LC DDM TRANSCEIVERQSFP-40G-ER4 CWDM 40KM LC DDM TRANSCEIVERQSFP-40G-ER4 CWDM 40KM LC DDM TRANSCEIVERQSFP-40G-ER4 CWDM 40KM LC DDM TRANSCEIVER

QSFP-40G-ER4 CWDM 40KM LC DDM TRANSCEIVER

  • 40G
  • CWDM
  • ER4
  • 40KM
  • QSFP-40G-ER4  , QSFP-40G-ER4-S  , Cisco 40G QSFP+ ER4  , 40G QSFP+ ER4
    Inquiry Send Email

    Description

    40Gbps CWDM 40KM QSFP+ Optical Transceiver

    Features

    • Transmission data rate up to 11.2Gbps per channel
    • QSFP+ MSA compliant
    • Compliant to IEEE 802.3ba specification for 40GBASE-ER4 links
    • 4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1271, 1291, 1311 and 1331nm
    • High Sensitivity APD-TIA with optical DEMUX
    • Up to 40km reach over standard single mode fiber
    • Hot pluggable electrical interface
    • Operating case temperature 0°C to +70°C
    • 3.3V power supply
    • RoHS 6 compliant(lead free)



    Applications


    • 40GBASE-ER4 40G Ethernet links
    • OTU3,OTU3e1,OTU3e2



    Description

    This product is a transceiver module designed for 40km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (4ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

    The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

    The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
