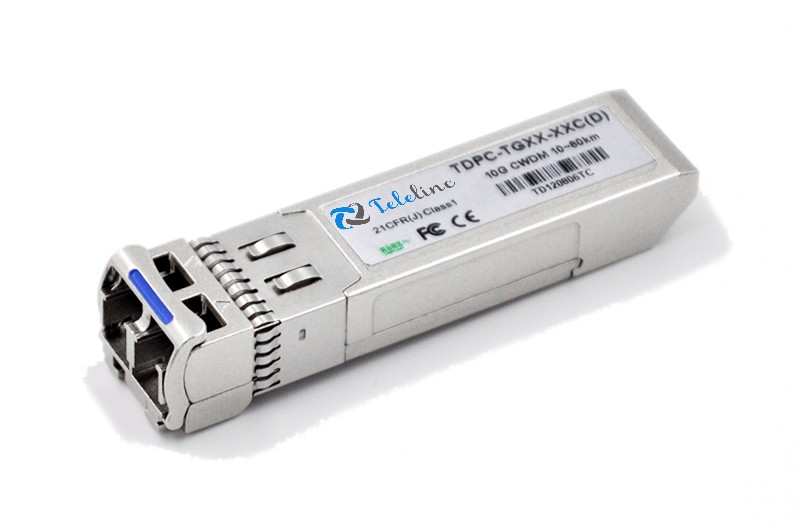

10G CWDM 40KM SFP+ OPTICAL TRANSCEIVER

10G CWDM 40KM SFP+ OPTICAL TRANSCEIVER

  • 10g
  • CWDM
  • 40km
  • DOM
  • ZTE 10Gbps CWDM 40km  , HP 10G SFP+ CWDM 40km SMF  , 10G CWDM SFP+ Transceiver
    Inquiry Send Email

    Description

    10Gbps CWDM 40KM SFP+ Transceiver

    Features

    Ø Up to 11.1Gbps Data Links

    Ø Up to 40KM transmission on SMF

    Ø Power dissipation <1.5W

    Ø Uncooled CWDM EML Laser and PIN receiver

    Ø Metal enclosure, for lower EMI

    Ø 2-wire interface with integrated Digital Diagnostic monitoring

    Ø Hot-pluggable SFP+ footprint

    Ø Specifications compliant with SFF 8472

    Ø Compliant with SFP+ MSA with LC connector

    Ø Single 3.3V power supply

    Ø Case operating temperature range:0°C to 70°C

    Applications

    Ø 10GBASE-ER/EW

    Ø 10G Ethernet


    Standard

    Ø Compliant to 802.3ae 10GBASE-ER/EW

    Ø Compliant to SFF-8431

    Ø RoHS Compliant.


    Product description


    The transceiver consists of two sections: The transmitter section incorporates a EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
