Home Products Optical Transceiver 16G SFP+ 16G SFP+ BIDI 1270/1330NM 10KM DDM

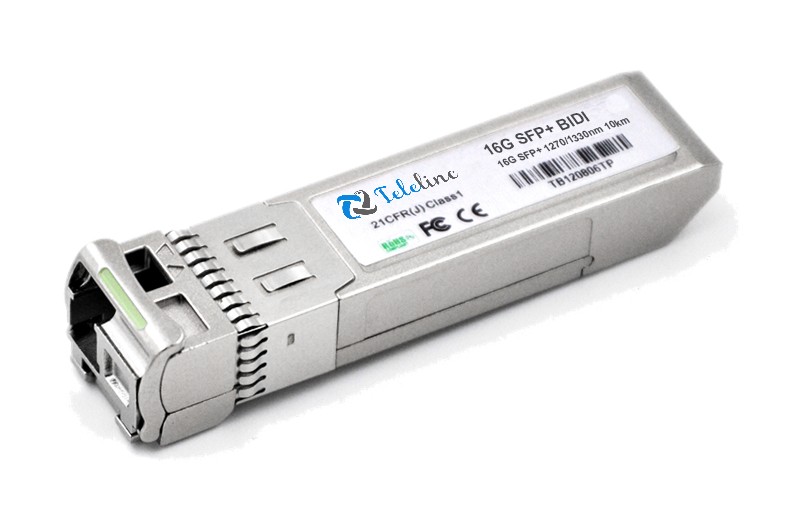

16G SFP+ BIDI 1270/1330NM 10KM DDM

16G SFP+ BIDI 1270/1330NM 10KM DDM

  • DATA RATE:16G
  • WAVE LENGTH:1270/1330nm
  • DISTANCE:10KM
  • CONNECTOR:LC
  • 16g lr  , 16g bidi  , 16g wdm
    Inquiry Send Email

    Description

    16Gbps SFP+ BIDI Transceiver, Single Mode, 10km Reach

    1270nm TX / 1330nm RX


    Features

    Ø Supports up to 14.025Gbps bit rates

    Ø Hot-pluggable SFP+ footprint

    Ø 1270nm DFB laser and PIN photodiode, Up to 10km for SMF transmission

    Ø Compliant with SFP+ MSA and SFF-8472 with single LC receptacle

    Ø Compatible with RoHS

    Ø Single +3.3V power supply

    Ø Real Time Digital Diagnostic Monitoring

    Ø Operating case temperature:

    Standard: 0 to +70°C


    Applications

    Ø 4.25/8.5/14.025G Fibre channel


    Product description

    The SFP+ transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 10km transmission distance with SMF.

    The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

    The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
