Description

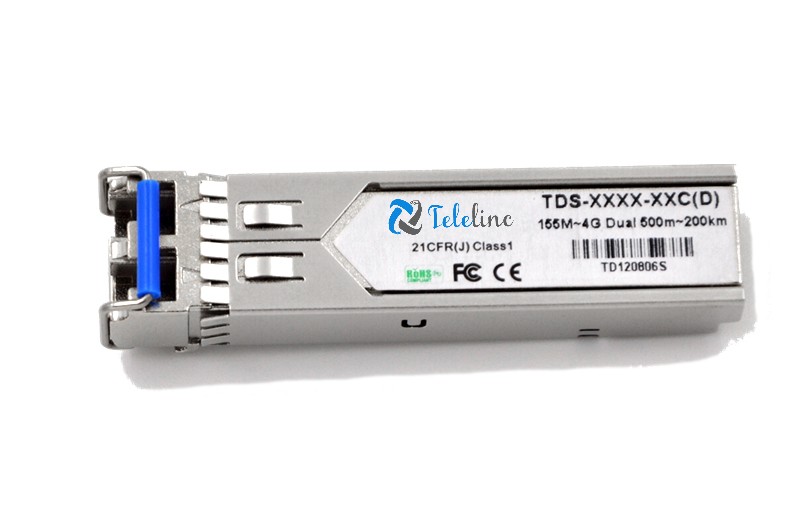

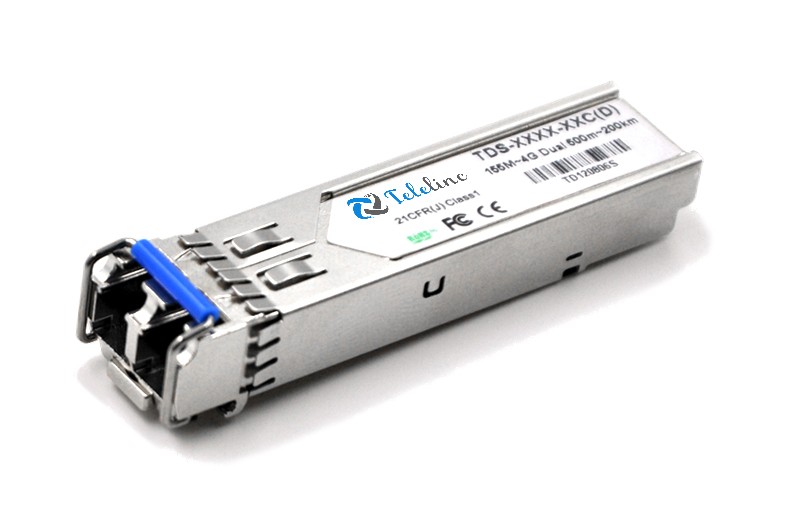

1.25Gbps SFP Optical Transceiver, 10-20KM Reach
Features
Ø Data-rate of 1.25Gbps operation
Ø 1310nm FP laser and PIN photodetector for 10KM transmission
Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Ø Digital Diagnostic Monitoring:
Internal Calibration or External Calibration
Ø Compatible with SONET OC-24-LR-1
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature:
Standard : 0 to +70°C
Extended : -20 to +85°C
Industrial : -40 to +85°
Applications
Ø Gigabit Ethernet
Ø Fiber Channel
Ø Switch to Switch interface
Ø Switched backplane applications
Ø Router/Server interface
Ø Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 10KM transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
