Description

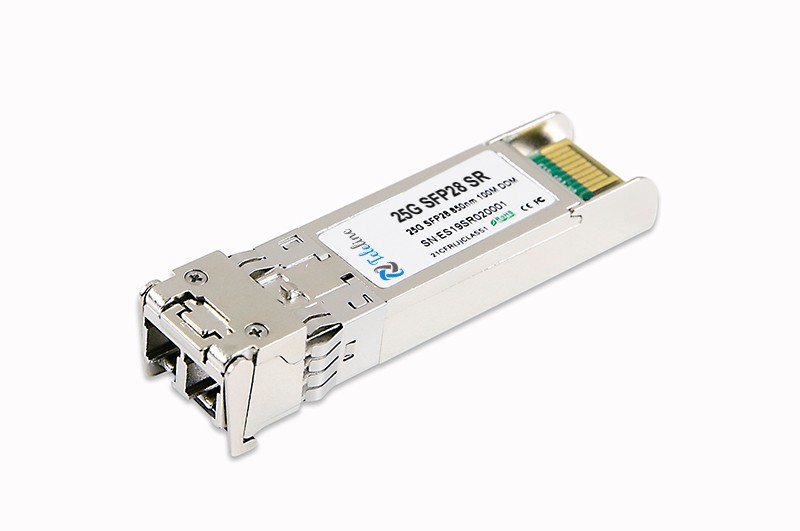

25G 850nm Multi-mode SFP28 TTL Duplex Transceiver (100m)
Features
Ø Supports 25Gbps data rate
Ø 70m on OM3 MMF and 100m on OM4 MMF
Ø 850nm VCSEL laser and PIN photo-detector
Ø Inter CDR on both Transmitter and Receiver channel
Ø Duplex LC receptacle
Ø Single 3.3V power supply
Ø Power dissipation < 1W
Ø DDM functions are available via the I2C interface
Ø RoHS-6 compliant
Ø Commercial case temperature range: 0°C to 70°C
Applications Applications
Ø 25GBASE-SR Ethernet
Product description
The SFP28 SR is a single-Channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. It is a high performance module for short-range data communication and interconnects applications which operate at 25.78125 Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber. This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 20 contact edge type connector. The optical interface uses duplex LC receptacle. This module incorporates proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
