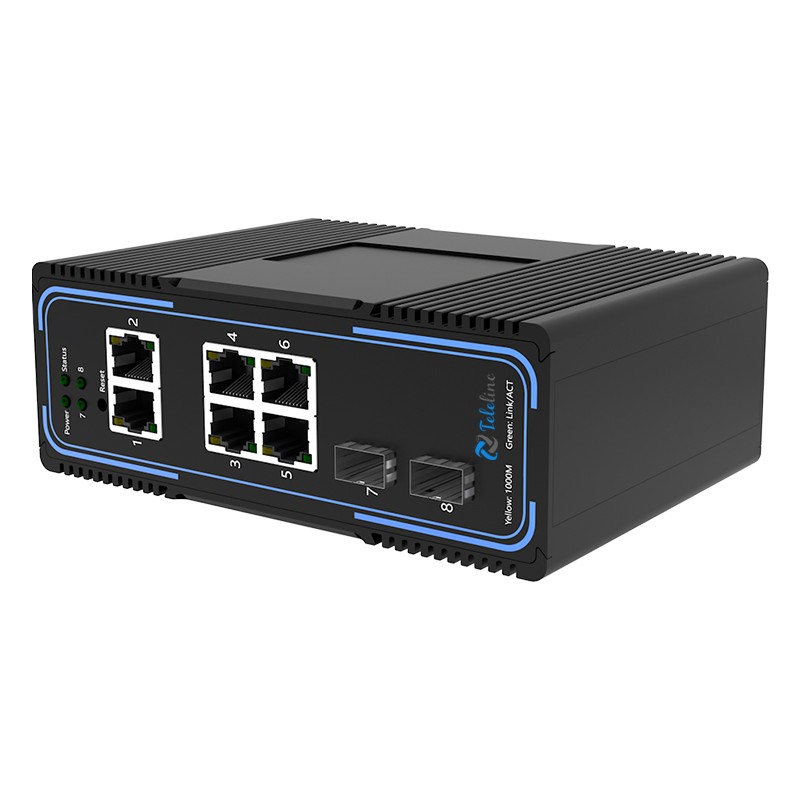

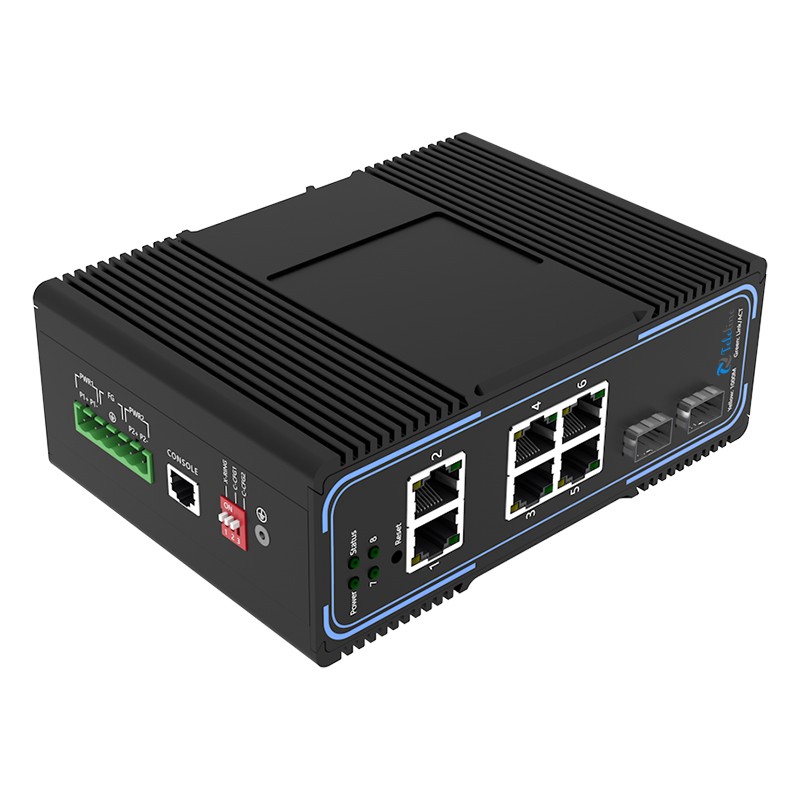

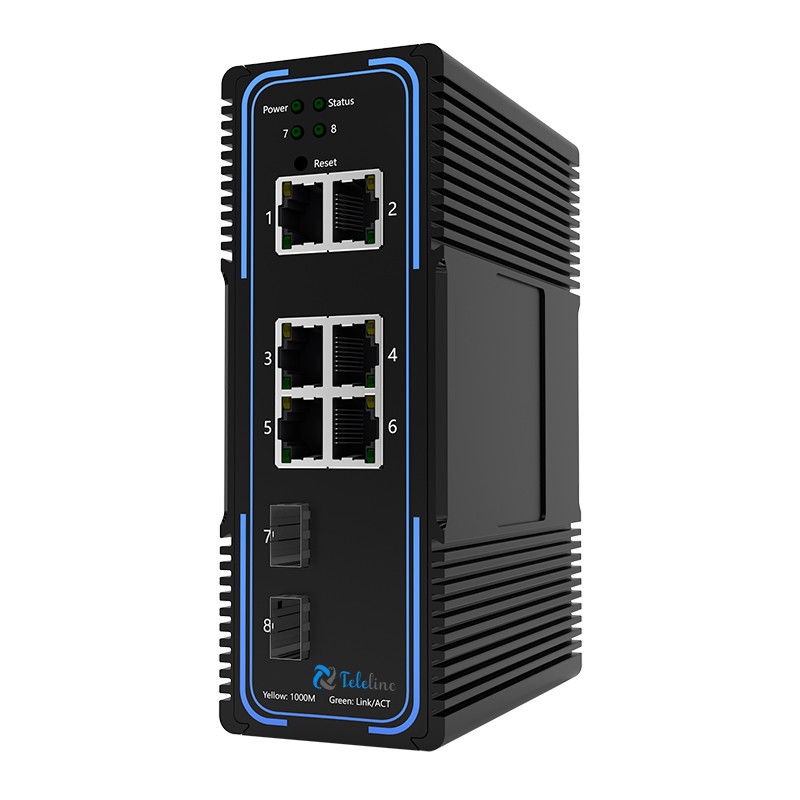

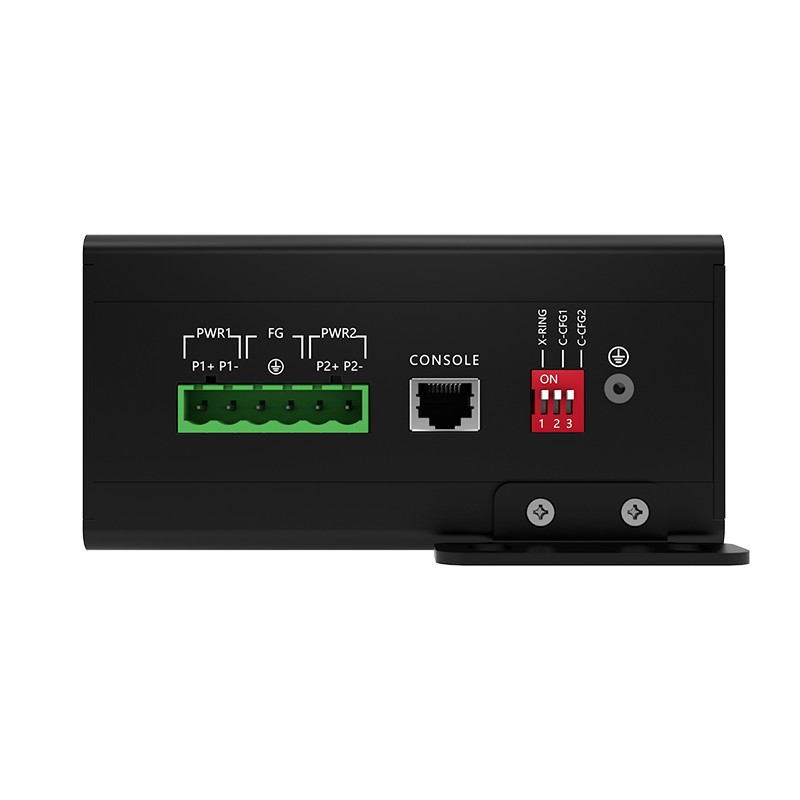

TLM500-6GT2GS 6Ports 10/100/1000MBase and 1 SFP Slots Managed Industrial Switch
TLM500-6GT2GS 6Ports 10/100/1000MBase and 1 SFP Slots Managed Industrial SwitchTLM500-6GT2GS 6Ports 10/100/1000MBase and 1 SFP Slots Managed Industrial SwitchTLM500-6GT2GS 6Ports 10/100/1000MBase and 1 SFP Slots Managed Industrial SwitchTLM500-6GT2GS 6Ports 10/100/1000MBase and 1 SFP Slots Managed Industrial Switch

TLM500-6GT2GS 6Ports 10/100/1000MBase and 1 SFP Slots Managed Industrial Switch

  • Product Item:TLM500-6GT2GS
  • Downlink:6 * 10/100/1000Base-T Ethernet Ports
  • Uplink:2 * 1000BASE-X SFP
  • Forwarding performance:11.9Mpps
  • Switch capacity:55Gbps
  • managed industrial switch  , industrial switch  , management industrial switch
    Inquiry Send Email

    Description

    TLM500-6GT2GS 6Ports 10/100/1000MBase and 1 SFP Slots Managed Industrial Switch

    The TLM500 series switches provide superior industrial quality with high/low temperature and lightning protection through fanless cooling circuit design, wide operating temperature range and high protection level. They also integrate rich functions such as switching, security and management. Support for the public Ethernet Ring Protection Protocol (ERPS), greatly improving the flexibility and availability of networking, and enhancing the reliability and security of industrial networks.

    Description

    Downlink:6 * 10/100/1000Base-T Ethernet Ports

    Uplink:1 * 1000BASE-X SFP

    Non-polar DC power supply

    Forwarding performance:8.93Mpps

    Switch capacity:55Gbps

    Specifications

    Parameters

    TLM500-6GT2GS

    Downlink

     6 * 10/100/1000Base-T Ethernet Ports

    Uplink

     2 * 1000Base-X SFP

    Power

    Dual power redundancy

    MAC address

    8K

    buffer(bits)

    4M

    Power Protect

    Non-polar DC power supply

    Input voltage

    DC:12V~54V (POE 52V)

    Power consumption

    < 15W (exlcude POE)

    Operating environment

    -40℃~+85℃

    5% to 95% (non-condensing)

    Heat dissipation

    Natural heat dissipation

    DIP switch

    One Key Ring

    Installation

    DIN/Bracket

    IP Level

    IP40

    Surge

    IEC 61000-4-5 Level 4

    EFT

    IEC 61000-4-4 Level 4

    ESD

    IEC 61000-4-2 Level 4
