Description

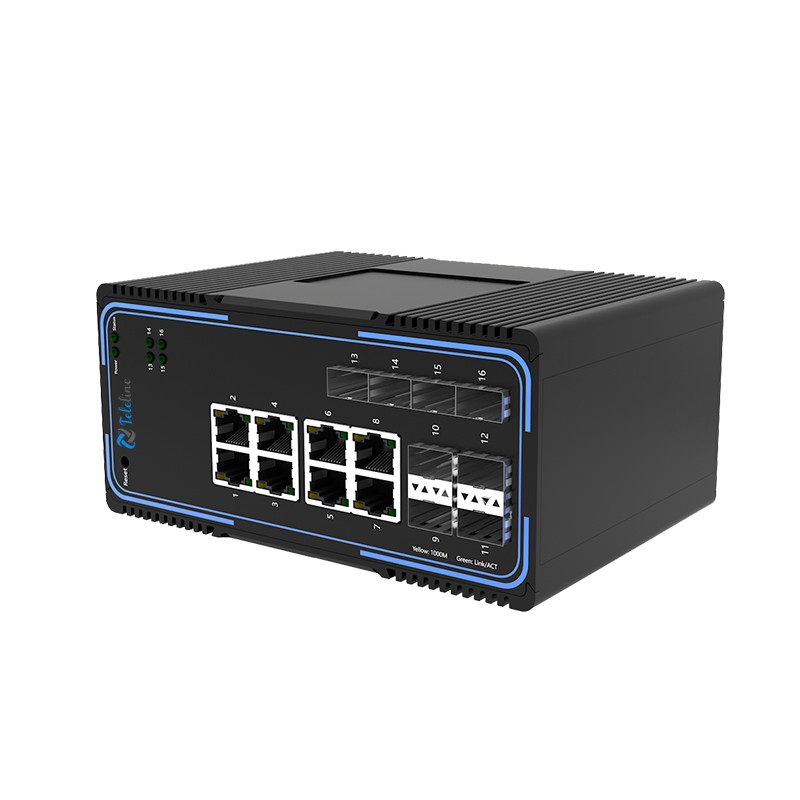

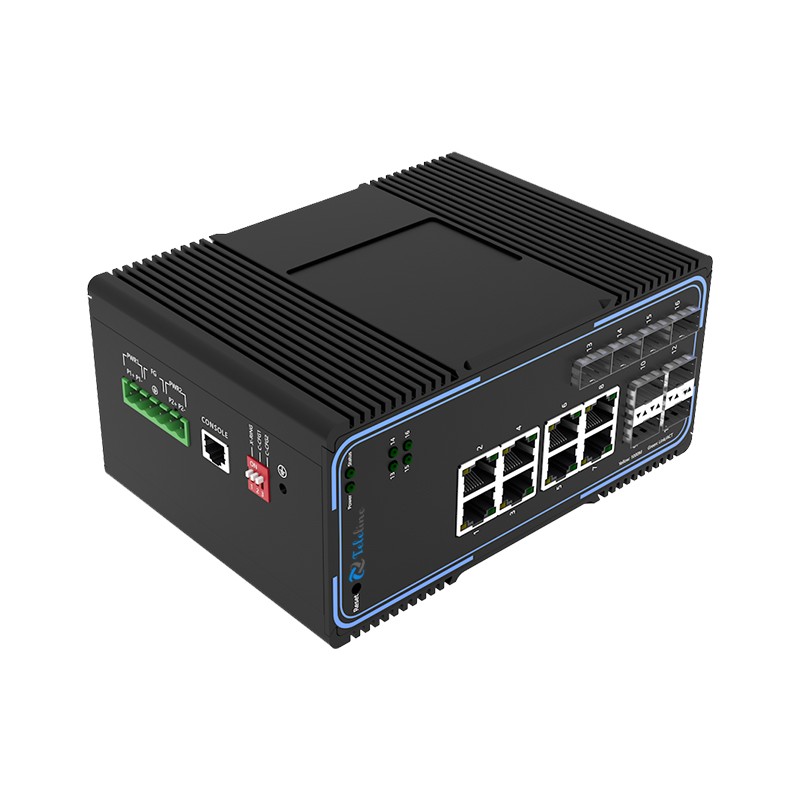

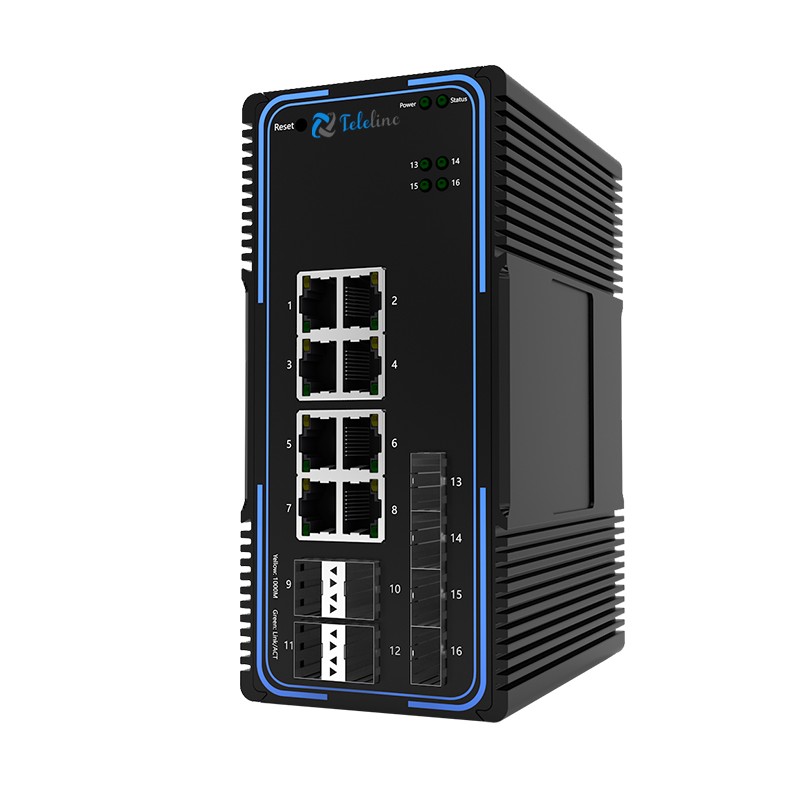

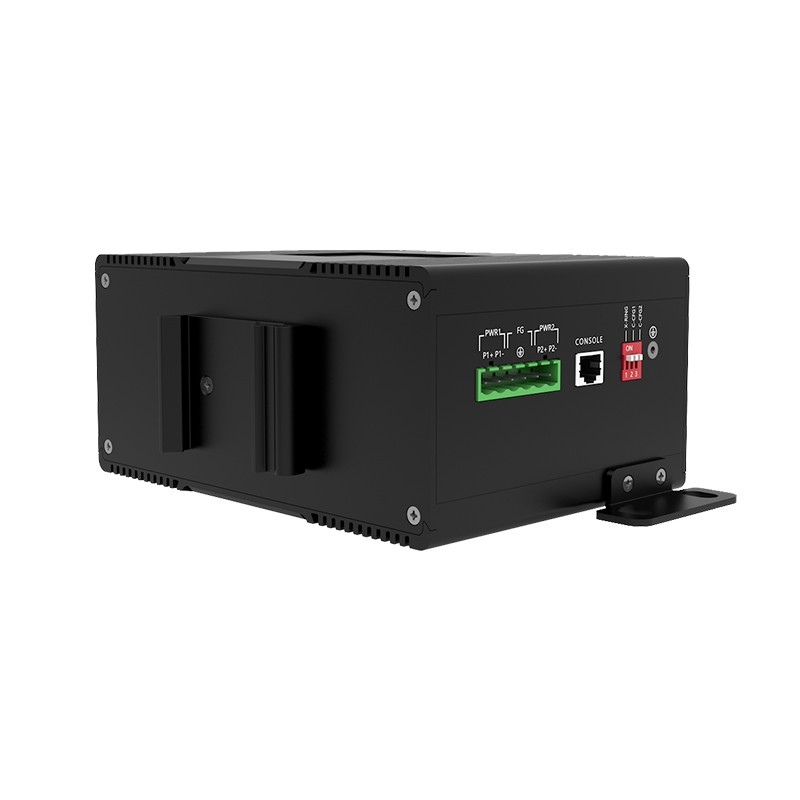

TLM505-8GT8GS 8Ports 10/100/1000MBase and 8 SFP Slots Managed Industrial Switch
The TLM500 series switches provide superior industrial quality with high/low temperature and lightning protection through fanless cooling circuit design, wide operating temperature range and high protection level. They also integrate rich functions such as switching, security and management. Support for the public Ethernet Ring Protection Protocol (ERPS), greatly improving the flexibility and availability of networking, and enhancing the reliability and security of industrial networks.
Description
Downlink:8 * 10/100/1000Base-T Ethernet Ports
Uplink:8 * 1000BASE-X SFP
Non-polar DC power supply
Forwarding performance:23.8Mbps
Specifications
Parameters |
TLM505-8GT8GS |
Downlink |
8 * 10/100/1000Base-T Ethernet Ports |
Uplink |
8 * 1000Base-X SFP |
Power |
Dual power redundancy |
MAC address |
8K |
buffer(bits) |
4M |
Power Protect |
Non-polar DC power supply |
Input voltage |
DC:12V~54V |
Power consumption |
< 25W |
Operating environment |
-40℃~+85℃ |
5% to 95% (non-condensing) |
|
Heat dissipation |
Natural heat dissipation |
DIP switch |
One Key Ring |
Installation |
DIN/Bracket |
IP Level |
IP40 |
Surge |
IEC 61000-4-5 Level 4 |
EFT |
IEC 61000-4-4 Level 4 |
ESD |
IEC 61000-4-2 Level 4 |
