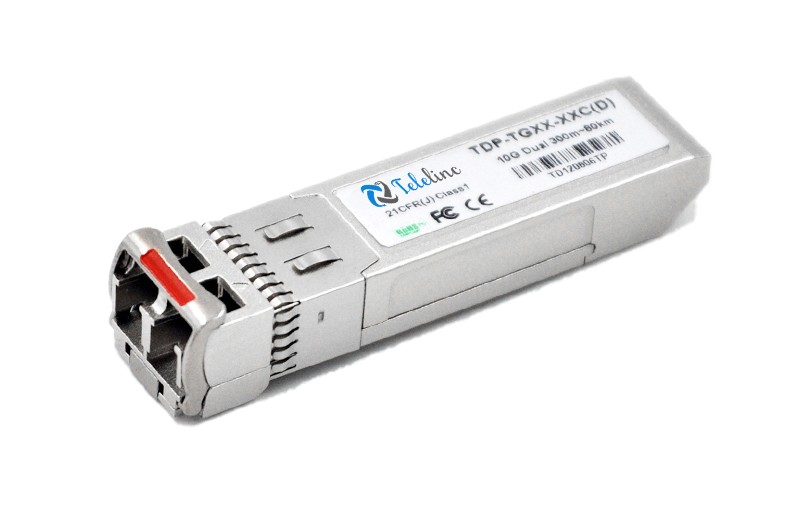

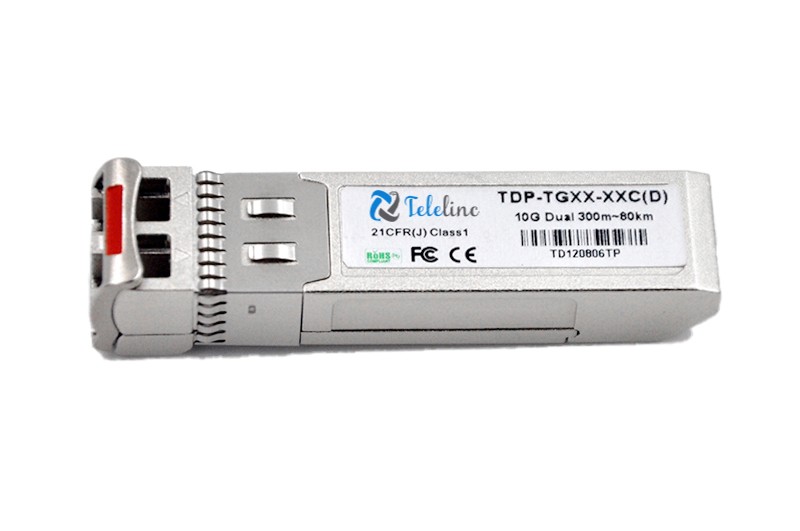

10GBASE-ER SFP+ 1550NM 40KM TRANSCEIVER
10GBASE-ER SFP+ 1550NM 40KM TRANSCEIVER10GBASE-ER SFP+ 1550NM 40KM TRANSCEIVER

10GBASE-ER SFP+ 1550NM 40KM TRANSCEIVER

  • DATA RATE:10G
  • WAVE LENGTH:1550nm
  • DISTANCE:40KM
  • CONNECTOR:LC
  • SFP-10G-ER  , EX-SFP-10GE-ER  , 10G-SFPP-ER  , J9153A  , SFP-XG-ER-SM  , 430-4585  , 10GB-ER-SFPP  , LE0M0XS4FF  , AA1403013-E6
    Inquiry Send Email

    Description

    10Gbps 1550nm 40KM SFP+ Optical Transceiver

    Features

    Up to 11.1Gbps Data Links
    Up to 40km transmission on SMF
    EML transmitter and PIN receiver
    Metal enclosure, for lower EMI
    2-wire interface with integrated Digital Diagnostic monitoring
    Hot-pluggable SFP+ footprint
    Specifications compliant with SFF 8472
    Compliant with SFP+ MSA with LC connector
    Single 3.3V power supply
    Case operating temperature range:0°C to 70°C

    Power dissipation < 1.5 W


    Applications

    10GBASE-ER/EW & 10G Ethernet


    Standard

    Compliant to SFF-8431
    Compliant to SFF 8472

    RoHS Compliant.


    Product Description

    SFP+ transceiver  is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fiber. The module consists of 1550 EML Laser, InGaAs PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF¬8472. The module data link up to 40km in 9/125um single mode fiber.
